Description
Universal Laptop Charger Ac Adapter Compatibility List

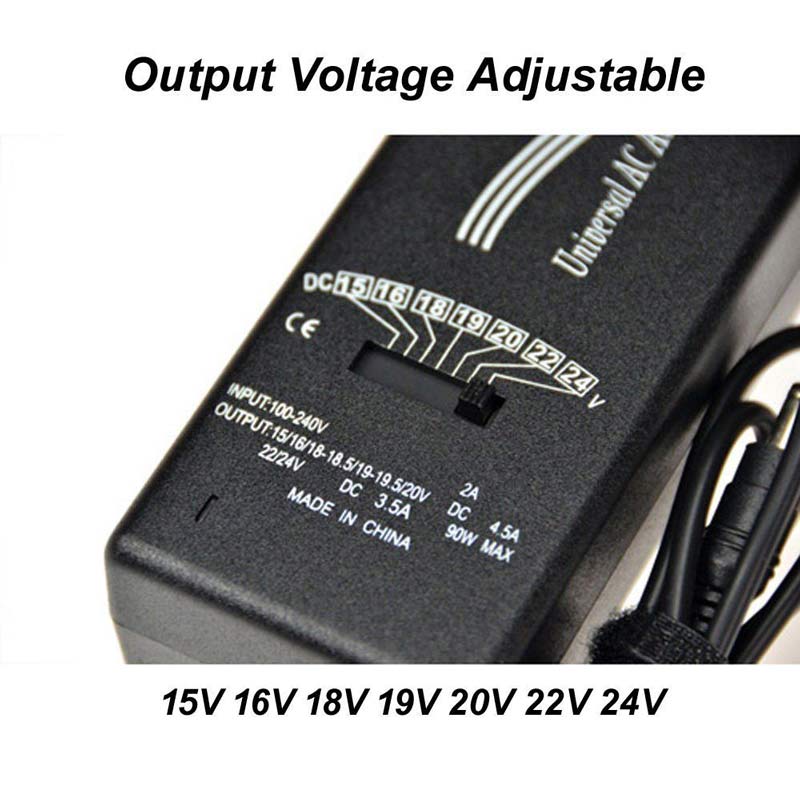

This Universal laptop Charger has Multiple Voltages Options so you can use this Universal AC Adapter with different Laptops models:
Please be advised the adapter DOES NOT work with all laptops. It works with MOST models of laptops and notebooks. Please compare your laptop model with the list below before making a purchase.
This adapter is not be compatible with HP DV3 DV4 DV5 DV6 or Dell 6400 1720 1721 6000 and so on. Please check the tip of your original adapter before buying
Buying the right adapter Tips:
- If the specifications are the same as your original one, this one should be fit.
- Please check volt/p of your original adapter.
Voltage deviation should be no more than 5%.
For example, required voltage is 19v, 18.05v to 19.95v will do the job. - Amperage value should equal or exceed original.
- If laptop needs 3.42a , then 4.7a is OK – the laptop will take 3.42a as needed.
- Check AC adapter connector shape thoroughly
Size of original tip of adapter: 5.5×2.1mm(Acer)

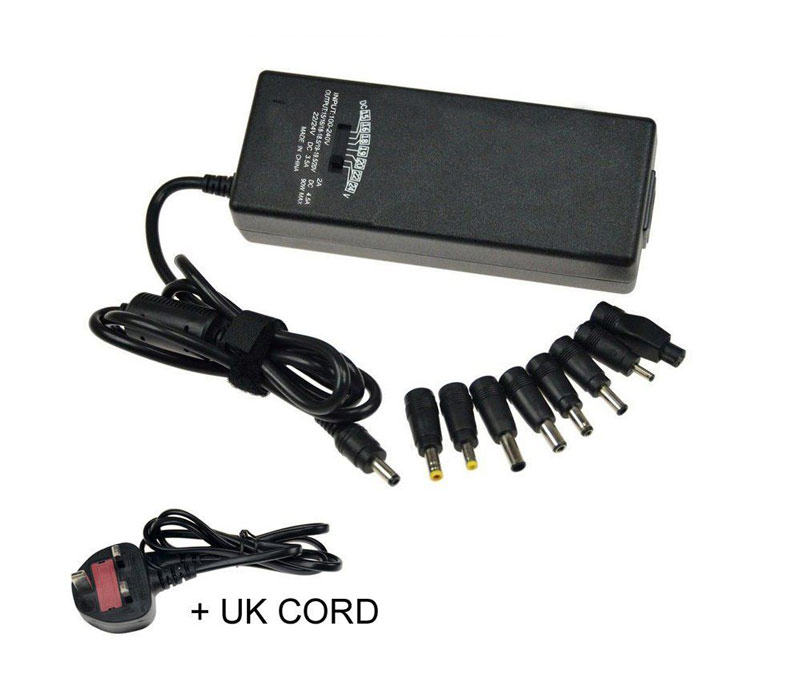

Extra 8 tips size:
Tip 1 – 6.5mm x 4.4mm (Sony)
Tip 2 – 6.3mm x 3.0mm (Toshiba)
Tip 3 – 4.8mm x 1.7mm (hp/compaq)
Tip 4 – 5.5mm x 2.5mm (IBM)
Tip 5 – 5.5mm x 3.0mm (Samsung)
Tip 7 – 5.5mm x 2.5mm (Gateway/Toshiba)
Tip 8 – 5.5mm x 1.5mm (Acer)
Tip 6 – 3-pin (Dell PA-9 model)
Tip Original *original tip on the cable of adapter
DC 19V or 19.5V 3.42A/4.74A(MAX) (ACER)
Travel Mate 200,300,500,600,700,800,2300,2400,3000,4000,5100,6000,8000
Acer Aspire 1200,1400,1600,2000,3000,3500,3600,5000,5500,7100
Tip E (hp/compaq)
DC18.5V/19V 3.5A/4.7A(MAX)
Compaq Presario B1000, B2000, B3000 Series
Compaq Presario C300 C500 C700 Series
Compaq Presario F500 F700 Series
Compaq Presario M2000 Series
Compaq Presario V1000 V2000 V3000 V4000 V5000 V6000 Series
HP Pavilion DV1000 DV2000 DV4000 DV5000 DV6000 DV8000 DV9000 Series
HP Compaq ZE2000, ZE2100, ZE2200, ZE2300, ZE2400 Series
Compaq Presario X1000 Series
Tip B/F (IBM/Gateway/Toshiba)
DC 19V 3.16A/3.42A/3.95A/4.74A/4.9A(MAX)
TOSHIBA
Toshiba Satellite A100 A105 A200 Series
Toshiba Satellite L10 L15 L20 L25 L30 L35 L45 Series
Toshiba Satellite M105 M115 M200 M205 Series
Toshiba Satellite M30X M40 M55 M60 Series
Toshiba Satellite 1000 3000 Series
Gateway
GATEWAY 3000 4000 6000 Series
ACER
Travel Mate 200,300,500,600,800
DELL
100L, 120L, 110L
HP Pavilion N3000 N5000 Series
Tip G (Samsung)
DC 19V 3.16A(MAX)
Gateway Solo SOLO 200 200ARC SOLO 200E SOLO 200X
Samsung S series
sens630 sens640 sens650 sens670 sens680 sens690 sens710 sens750 sens820
sens850 sens855 sens860 sens870 sens890
Samsung X series
X05 X06 X10 X11 X15
Samsung M series
M40 VM6000
Samsung Sens Pro series
sens pro 680 sens pro 850
Samsung Q series
Q1 Q30 Q35 Q40 Q45 Q70 Q1B Q1P Q1U Q1UP
Samsung R series
R19 R20 R23 R23 R25 R40 R45 R50 R510 R60
Samsung P series
P26 P27 P28 P28G P29 P30 P35
Tip D (Toshiba)
DC 15V 3A/4A/5A/6A (MAX)
Satellite A100 A105 M100 M105 P100 P105
Satellite Pro 600
Satellite 1400 1800 2400 2500 5000
Satellite Pro 6000
Tecra 9000, A6
Tip H – 3pin (Dell)
20V 3.5A/4.5A (MAX)
DELL Inspiron 4000 4100 3700 5000 7500
Dell Latitude C400 C500 C510 C600 C610 C640 C800 Dell Inspiron 2650 2500 2600 3700
PA-6 PA-9
